VizVid Documentation

VizVid is a versatile multimedia player frontend designed specifically for VRChat. Whether you are watching videos with friends, hosting music performances, or setting up a gallery exhibition, VizVid provides a robust solution for any scenario.

Built with a modular design, VizVid allows you to pick and choose the exact components you need to build a custom player tailored to your world.

Note

This documentation covers version v1.4.13 and later. Some features or instructions may differ in older versions.

Quick Start

How to Add VizVid into Your World

  1. Right-click on the hierarchy.
  2. Find VizVid in the menu.
  3. Choose the player preset you want to add.

Common Presets

General-purpose presets for most uses.

  • On-Screen Controls
    The simplest version — controllers embedded on the screen. No extra spaces needed.
    VRChat_2025-12-22_01-32-37.218_3840x2160
  • Separated Controls
    Controller and playlist panels can be placed independently if you didn't prefer touchscreen-like controlls.
    VRChat_2025-12-22_01-31-45.190_3840x2160

Exhibition Presets

Designed for exhibition use. VizVid runs in local mode. Includes a proximity-based autoplay feature.

  • For Single Video Exhibition
    Designed to play a single video with playlist module disabled.
  • For Multiple Video Exhibition
    Designed to play multiple videos and supports playlists.

Enable Playback Speed Control

This feature depends on AVPro Stub.
Follow the steps on the image below to install it.

Enable YTTL

Support showing video titles for YouTube videos.
Follow the steps on the image below to install it.

Migrate to Text Mesh Pro

Using Text Mesh Pro will make fonts on VizVid even clearer.
Select all VizVid prefabs in hierarchy.
And follow the steps on the image below to migrate.

Editing Playlists

Here's the detailed guide for playlist editor.

  • Left-side playlist column
    • Click ＋ or ー to add / remove playlists.
    • You can store multiple playlists. Drag on the left ＝ icon to reorder playlists.
  • Right-side playlist contents
    • Click ＋ or ー to add / remove contents.
    • Titles can be set manually, or after entering a YouTube URL, use the Fetch Titles below to auto-fill the title.
    • Enter a PC URL, the Quest URL will be auto-filled.
      URL (PC) and URL (Quest) let you set different URLs for different platforms (useful for live streams).
    • Choose a different backend depending on media type; AVProPlayer is set by default.
    • Drag on the left ＝ icon to reorder contents.
  • Top toolbar
    • Reload: Restore the last saved playlist.
    • Save: Save the current playlist to the player.
    • Export All: Export all playlists to a JSON file.
    • Export Selected: Export the currently selected playlist to a JSON file.
    • Load from JSON: Import an external JSON playlist.
    • Download/Update YT-DLP: Install or update yt-dlp (for fetching video titles).
  • Bottom toolbar
    • Load Playlist from YouTube: Paste a YouTube playlist URL into the left column to import it into the current playlist. Supports Public and Unlisted playlists (accessible via link); Private playlists are not supported.
    • Fetch Titles: Read a YouTube link and automatically fill in the title.
    • Reverse Playlist: Reverse the order of the playlist.

Modules

Beyond the standard templates, VizVid provides various modules that can be mixed and matched.

Key Concepts

Before proceeding, distinguish between these two terms first:

  1. Prefab
    The objects visible in your Hierarchy. These are pre-configured containers of components.
  2. Component
    The scripts visible in the Inspector. These are the functional building blocks of VizVid.

Prefabs

Right-click in the Hierarchy and navigate to VizVid > Modules to find these prefabs:

  • VizVid Core
    The "Brain" of VizVid.
    Every independent player instance requires one Core.
    By default, it includes the prefabs in the follow:
    • AVPro Module
    • Builtin Modile
    • Image Module
    • Playlist Queue Handler
    • Locale
    • Rate Limit Resolver
    • Dafault Audio Source
  • On-Screen Controls with Screen
    A touchscreen-style controller bundled with a screen object.
  • Separated Controls
    A standalone controller that can be placed anywhere without video screen.
  • Separated Controls (Narrow)
    A compact version for tight spaces.
  • Separated Controls (with Alt. URL Input, Narrow)
    Compact controller with support for entering alternative URLs on mobile platforms.
  • Overlay Controls
    A HUD controller providing extra control for both Desktop and VR users.
  • Pickupable Screen
    A portable screen that can be moved and resized. It is set to Local by default (other users won't see your personal screen).
  • Screen
    A standard screen object that can be placed independently from the controls.
  • Resync Button
    A standalone button to force synchronization. Highly recommended for live events.
  • Stream Key Assigner
    Automatically generates stream keys for services like TopazChat. Useful for music events.
Note

See Stream Key Assigner for more details.

  • Audio Source (Mono / Stereo / 5.1 Surround)
    Adds specialized audio outputs for VizVid.
    (See 5.1 Surround Configuration for setup details).
  • Auto Play on Near (Local Only)
    Triggers a default video when a user approaches and stops it when they leave. Ideal for exhibition booths.

Components

Note

This section covers settings relevant to most users.
For advanced usage, go check OtherScenarios, Q&A, or join our Discord server.

Core

This component manages VizVid's playback logic.
(Note: Some options only appear when a Frontend Handler is specified).

  • Common Settings

    • Edit Playlists...
      Opens the playlist editor window. You can create, edit, and import playlists.
      For detailed usage, ckeck on Editing Playlists.
    • Enable Queue List
      When enabled, URLs you input can be queued into the queue list.
    • History Size
      Set how many playback URLs are stored in history. Set 0 to disable it.
      Note: Contents played from playlists will not be recorded in history.

  • Default Behavior
    Adjust VizVid's default values for this world.

    • Auto Play on Join
      Auto play the default playlist when the first player joined the world.
    • Auto Play Delay
      If there are no other video players besides VizVid in the world, you don't need adjust this.
    • Auto Play on Idle
      If the current playlist finishes, VizVid will continue play the default playlist.
    • Default Playlist
      Choose a playlist to use as the default from your saved playlists.
    • Default Volume
      The default volume level for players when they join the world.
    • Default Muted
      VizVid's volume are muted by default when players join the world.
    • Default Repeat Mode
      Choose from: None, Repeat One, Repeat All.
    • Default Shuffle
      Shuffle is enable by default when players join the world.
    • Seed Random Before Shuffle
      Regenerate random seed for shuffle playback when VizVid plays a playlist.

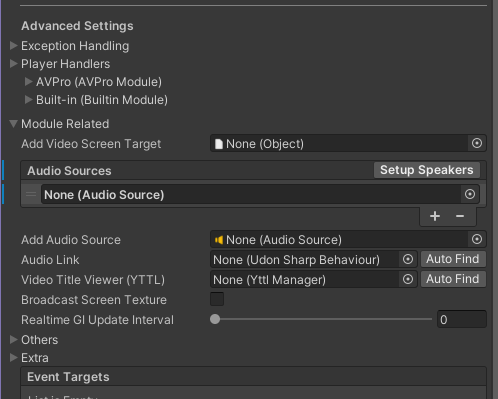

  • Advanced Settings

    • Exception Handling
      • Total Retry Count
        The maximum number of retry attempts when loading fails.
      • Retry Delay
        The interval time between retries when loading fails.
      • Time Drift Detect Threshold
        Detects playback latency between all users.
        Playback progress will be auto-adjust if the threshold is exceeded.

  • Player Handlers
    Manages the backends connected to VizVid.
    AVPro, Builtin, and Image are provided by default.

  • Module Related
    Manages the module's specifications on VizVid.

    • Video Screen Target
      Specifies the screen object containing the Screen Configurator component.
    • Audio Sources
      Specifies the Audio Source for VizVid’s sound output.
      Multiple Audio Sources can be specified for multi-channel setups.
    • Audio Link
      Specifies the AudioLink component.
      If you already had AudioLink in the project, you can click Auto Find to specify.
    • Video Title Viewer (YTTL)
      Specifies the YTTL Manager component.
    • Broadcast Screen Texture
      Enables broadcast screen textures, allowing supported shaders (e.g., Poiyomi) to display VizVid's video signals.
    • Realtime GI Update Interval
      The update interval for Realtime Global Illumination. Set to 0 to disable.

  • Others

    • URL Input Filter
      URL filtering settings.
      Implementation can be based on inheritance by referring to this Udon Script.
    • Global Default Texture
      The texture displayed by default on all screens when VizVid has no video content.
      This can be changed individually in each Screen Configurator.
    • Synced
      Sets whether VizVid operates globally. Enabled by default.
    • Enable Persistence
      Sets whether to save VizVid settings (such as volume). Enabled by default.

  • Extra Features

  • Event Targets
    Sends event data to Udon Sharp scripts set here to integrate custom scripts.

Frontend Handler

This component manages playlists and VizVid's default behavior.

The options for this component are integrated into the Core component.
Please refer to the Core section.

UI Handler

This component manages VizVid’s UI element's specification.

  • Main References
    • Core Handler
      Responsible for connecting to the Core component.
      If the reference is missing, you can click Auto Find to link it to the Core component in the scene.
    • Playlist Handler
      Responsible for connecting to the Playlist Queue Handler component.
      If the reference is missing, you can click Auto Find to link it to the Playlist Queue Handler component in the scene.

Color Config

This component manages UI color and usually appears alongside the UI Handler.

  • Color Palette
    Provides six default colors that can be assigned to different UI parts of VizVid.
  • Apply on Build
    Enabled by default. The currently modified colors will be applied automatically when Unity builds the scene.
  • Apply
    Allows you to apply colors to only the current Color Config component, or to all Color Config components in the scene.

Screen Configurator

This component is made for linking the video screen output to a specified shader.

  • Core Handler
    Specifies the linked VizVid core.
    If it displays "None (Core)", you can click Auto Find to specify the VizVid core in the scene.
  • Screen Renderer
    Specifies the Mesh Renderer where the video content will be output.

Other Scenarios

Import Playlist from Other Video Players

Just drag video player's object, drop in VizVid's playlist editor.
Supported video players in the following:

  • VizVid
  • USharp Video
  • Yama Player
  • KineL Video Player
  • iwaSync 3
  • JT Playlist
  • ProTV by ArchiTech
  • VideoTXL

Lighting & Visuals

LTCGI

  1. Refer to the LTCGI Documentation and place the LTCGI Controller into your scene.
  2. In the LTCGI Inspector, an "Auto-Configure XXX" button will automatically appear.
  3. Confirm that "XXX" is your VizVid Core, then click the button to allow LTCGI to receive the video signal from VizVid.
Note

LTCGI requires the use of supported shaders to display effects correctly.
Refer to this documentation to select a suitable shader.

VRC Light Volume (VRCLV)

  1. In the Hierarchy, right-click the VizVid screen object
  2. Follow the settings shown in the attached image to enable VRC Light Volume for VizVid:
Note

Please note that VRC Light Volume requires the use of supported shaders to display effects correctly.

Audio/Video Streaming

Many performance-based events uses external RTMP/RTSP services for low-latency stream into VRChat.
VizVid provides 3 methods in the following of stream URLs for performers and users.
Let's use TopazChat as an example.

Stream Key Assigner

Automatically generates and applies stream keys for streaming services.

  • Core Handler
    Responsible for connecting to the Core component.
    If the reference is missing, you can click Auto Find to link it to the Core component in the scene.
  • Playlist Queue Handler
    Responsible for connecting to the Playlist Queue Handler component.
    If the reference is missing, you can click Auto Find to link it to the Playlist Queue Handler component in the scene.
  • Player Backend Type
    Select the designated player backend. Streaming events typically use AvProPlayer.
  • Stream Key Template
    The format of the stream key. This can be modified as needed.
  • Stream URL Template
    The primary stream URL. Defaults to the TopazChat service and can be changed as needed.
  • Alt. Stream URL Template
    Alternative link for mobile platforms.
    Defaults to the TopazChat service; please use the same server as the URL above.
Note

{0} represents the unique ID for stream key; please ensure it is kept in the template.

  • Key Count
    The number of keys to be generated.
  • Unique ID Length
    The number of characters for the generated keys.

Separated Controls (with Alt. URL Input, Narrow)

Allows manual input of the stream URL and an alternative mobile platform URL directly within VRChat.
Reference image below:

Playlist Editing

Stream using a fixed stream key via the playlist.
Configuration reference image below:

Audio

BGM Volume Control

If your world has background music or ambient sounds, you can add this component to allow VizVid to automatically mute these Audio Sources when media content is playing. They will be unmuted when playback stops.

  1. Select the Audio Source you want to auto-mute.
  2. In the Inspector, add the BGM Volume Control component.
  3. Specify the core to be used.
  4. Done!

5.1 Surround Configuration

VRChat's AVPro backend supports 5.1 surround sound output within VRChat.
This is commonly used in cinema scenes or similar environments.
After adding Audio Source (5.1 Surround) via the menu, it will automatically link to VizVid.
Finally, adjust the positions of the Audio Sources as needed.

Reversing Playlist Order

If you prefer not to use VizVid’s default reverse-order (descending) playlist, you can change it using the following method:

  1. Locate the Scroll View prefab in your project at this path:
    Packages > VizVid > Prefabs > UI Elements
  2. Double-click the prefab to edit it.
  3. In the Inspector on the right, find the Pooled Scroll View component.
  4. Uncheck Inverse Order and save the prefab.
  5. Done!
Note

This operation sets the order for all playlists at once. To configure a specific playlist individually, locate the corresponding prefab instance within the Hierarchy UI objects and modify it there.

Locale

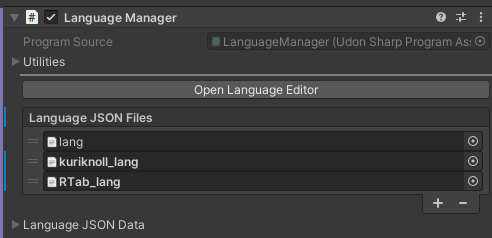

Language Manager is located under the Locale object to manage locales.
It also supports Text Mesh Pro UI elements outside of VizVid.

  1. In the Language Manager, refer to the JSON format to add a custom JSON file, edit the Language Keys, and enter the corresponding translations.
  2. Add the Language Receiver component to the Text Mesh Pro UI object you want to translate.
  3. Enter the corresponding Language Key.
  4. Done.
Tip

Language Manager can operate without VizVid. You can remove related objects (including the Core) if you don't need VizVid.
Keep the language menu, you can still switching between languages.

Note

Language Manager supports importing multiple JSON files. If you are concerned about overwriting VizVid's built-in JSON lists, you can create a separate JSON and import it into this component.

API Reference

Please refer to this page to link custom functions to VizVid.

Q&A

(Continuously Updated)

Q1: I configured LTCGI according to the instructions, but it didn't work.
A1: Your screen shader is likely not provided by VizVid. Please manually add an LTCGI Screen component.

Q2: I changed the default volume for VizVid, but it doesn't seem to reflect in VRChat?
A2: VRChat will use user's data first if they visited the world when Enable Persistence is checked in the VizVid Core.
To reset this and apply new default values, users must reset their data for that world in VRChat.

Q3: I can't find Core option in some components.
A3: Remove the Playlist Queue Handler object for once from the reference field, and the Core option will appear.
Due to the limitations of Unity's inspector editor, if the component has already found the Playlist Queue Handler, the Core option will be hidden by default.

Q4: No video, sound during playback
A4: Make sure your screen, audio source objects are specified in your Core component.

Note

If this section didn't solve your problem.
Just join our Discord server look for help.
